Winnetka Bluff Restoration

scope of work

  • Installed 88 Helical Piers
  • First Helical Job Constructed at Winnetka Beach
  • Performed on a Steep Bluff


Deep Foundation


April 2020

Download Project Page

Project Summary

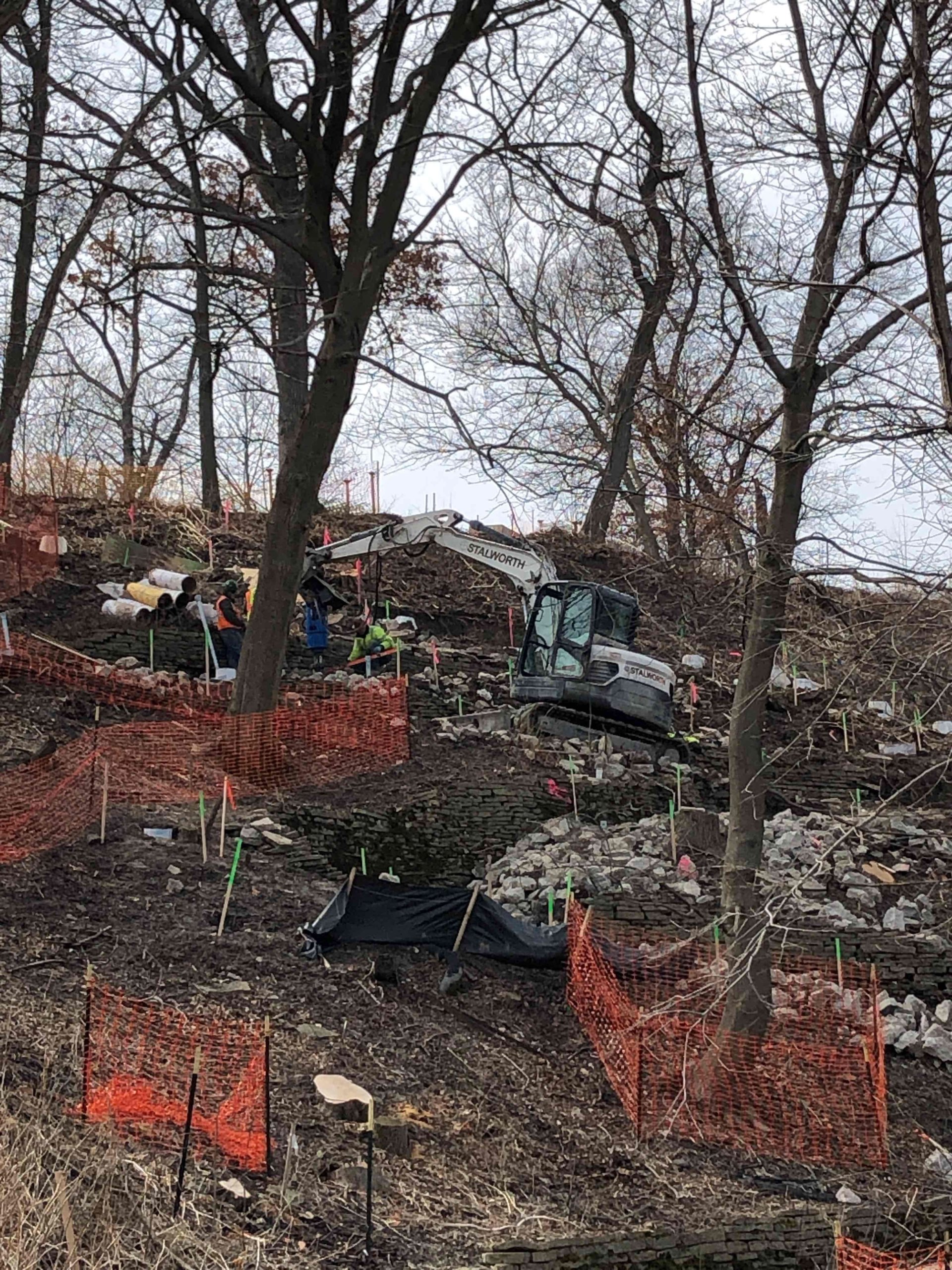

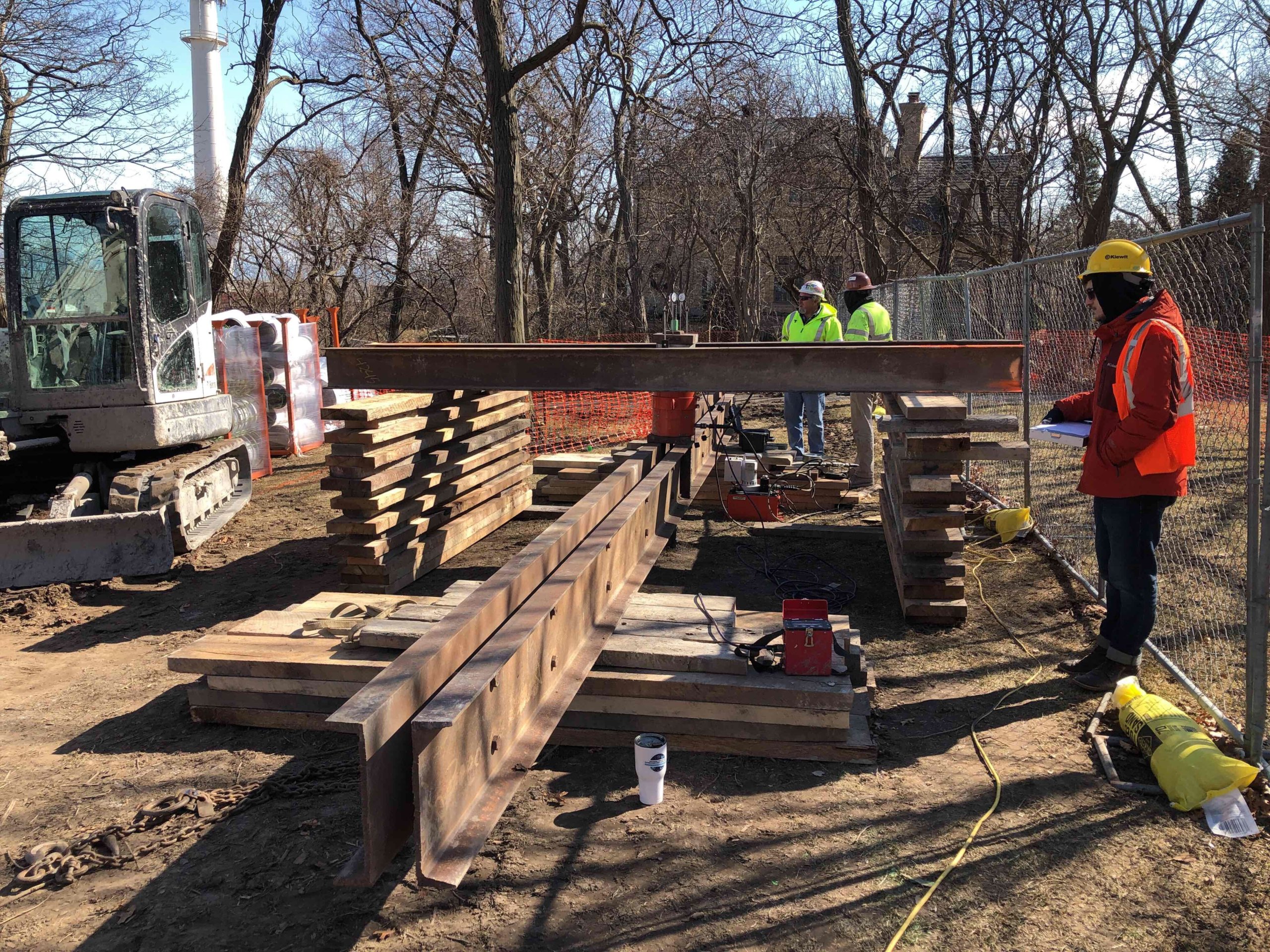

Stalworth installed 88 helical piers on a steep bluff leading to Winnetka Beach with each pier also requiring a concrete column to be poured around it. A sacrificial pier was also installed to run a load test. The piers serve as the foundation for a new boardwalk leading down the bluff.
